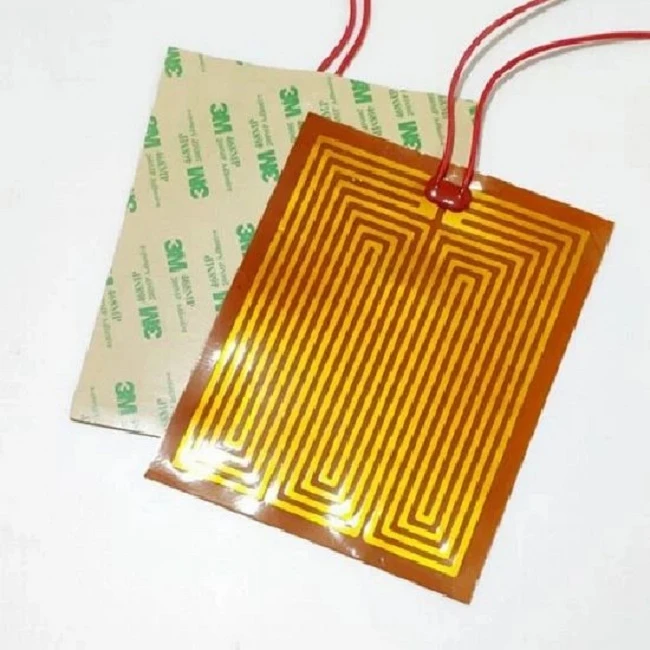

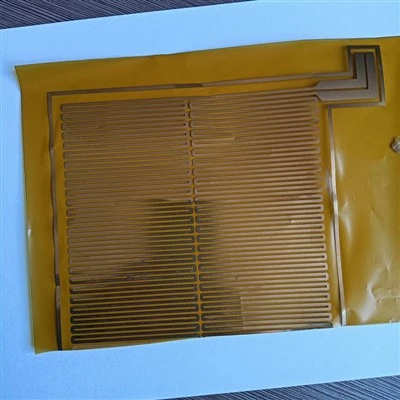

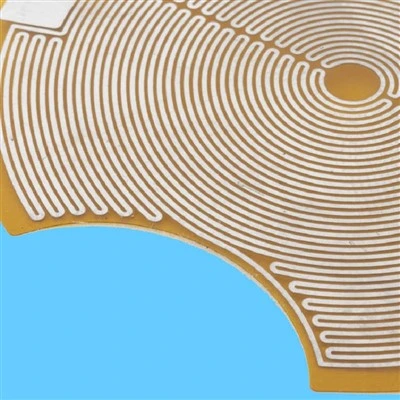

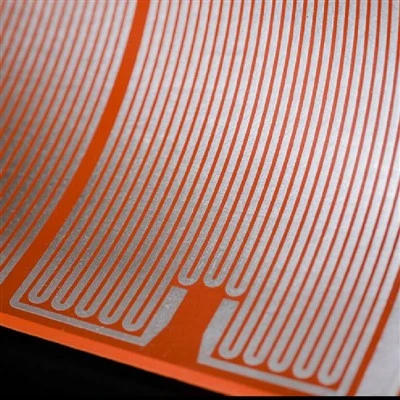

Flexible Heating Film
We have great advantages in etching, each product can be customized accordingto your requirments with varying material options.The courage to open up and unity and cooperation is the guarantee of the development of the company.We also have skilled engineers to provide optimized solutions according to yourinquiry. with more than 15years production experience, we can customize differentsizes and colors accoridng to customers requirements.
Why Choose Us
Our Factory
The company has a building area ofmore than 10,000 square meters and 10independent production lines in theworkshop .
Broad Market
Our sales network is spreadEurope, Asia, South America and theMiddle East.
Certificate
Our products have passed international quality certificates, including GB/T19001 2016/ISO9001:2015,GB/T24001 2016/ISO14001:2015 , with high quality and competitive prices.
Manufacturing capability
We have been specializing in seven-segment LED displays for more than 15 years, with more than 90% of our products designed specifically for our customers and a monthly production capacity of 500,000 units.
|
Power density range |
0.03w/cm2~2.5w/cm2 / (0.19w/inch2~16.13w/inch2) |
|
Thickness |
0.15-0.18mm |
|
Thermocouple |
K or J type |
|
Voltage |
3.7v-220v |
|
Wattage |
3w-100kw |
|
Material |
Polyimide |
|
Resistance Precision |
±10%ak±0.5Ω |
|
Power |
1-6.5w/cm2 |
Features of Flexible Heating Film
Heating fast and long time using.
Flexible and customization.
Waterproof and non-toxic(Waterproof grad:IP68).
Custom Size .Voltage.Watt.Shape.
We can provide free design.
We carry many other silicone pad heaters in different sizes and watts.
|
Specifications |
|
|
Main Material |
Silicone(V0,V1) and Imported silicone V0 options |
|
Temperature Rating |
482°F(250°C)Maximum operating |
|
Size/Shape Limitations |
Maximum width of 48 inches, No maximum length |
|
Thickness |
Normally 0.03 inch/ 0.75mm (Single-Ply),0.06 Inch / 1.5mm(Dual-Ply),Support custom |
|
Voltage |
Any AC or DC (3V-660V), or 3phase |
|
Power density |
Normal 0.03-0.8watts per square centimeter,Maximum 3W per square centimeter |
|
Power lead wire |
Silicone rubber, SJ Power Cord, or Teflon insulated stranded wire options,Usually 100cm length or as requested |
|
Attachment |
Hooks, lacing eyelets, Temperature control(Thermostat),Temperature sensor(Thermistor, Pt100, Thermocouple,Etc) |
|
Description |
1. Silicon Rubber Heating Pad/Sheet has advantages of thinness, Lightness, Sticky and Flexibility. |
|
2. It can improve heat transfer, Accelerate warming and Decrease power under the process of operation. |
|
|
3. They are heating fast and thermal conversion efficiency high. |
|
Advantages of Flexible Heating Film
Thin and Lightweight Design:
Their thin profile and lightweight construction make them ideal for applications where space and weight are critical.
Flexibility and Conformability:
The flexible nature of these heaters allows them to be easily shaped and adhered to curved or irregular surfaces.
Durability and Resistance:
Many flexible heating films are designed to be durable and resistant to moisture, chemicals, and harsh environments.
Cost-Effective:
Flexible heaters can be a cost-effective solution, especially when considering their durability and efficiency.
Versatile Applications:
They are used in a wide range of applications, including medical devices, industrial equipment, consumer electronics, and more.
Application of Flexible Heating Film
Medical:
Heating pads, wound healing devices, and temperature-controlled medical equipment.
01
Industrial:
Heating panels for machinery, process heaters, and temperature-controlled environments.
02
Consumer Products:
Heated clothing, warming mats, and other personal comfort devices.
03
Construction:
Underfloor heating systems and wall heating.
04
Food Packaging:
Minimizing the effects of adverse weather.
05
