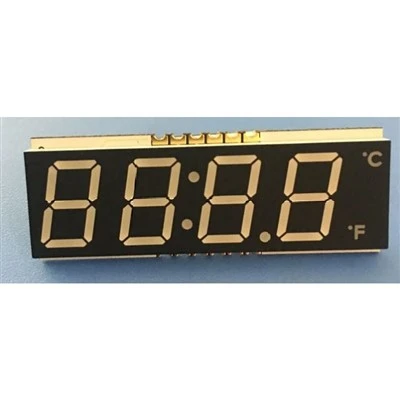

SMD Seven Segment LED Display
We have great advantages in etching, each product can be customized accordingto your requirments with varying material options.The courage to open up and unity and cooperation is the guarantee of the development of the company.We also have skilled engineers to provide optimized solutions according to yourinquiry. with more than 15years production experience, we can customize differentsizes and colors accoridng to customers requirements.
Our Factory
TOPSTAR SCAFFOLDING has it's production bases in Daqiuzhuang Town,Jinghai District,which is 70 miles aways from Tianjin Port and 45 miles away from Tianjin high-speed rail station. With registered capital 10 million yuan,our factory covers an area of 40,000 square meters and plant area of 32,000 square meters.
Global Shipping
Our sales markets are spreading all over the world and build long-term relationships with clients in American,Australia Vietnam,Singapore,Malaysia,African,Columbia and other countries.
One-stop Solution
We aim to be your one-stop scaffolding industrial supplier by offering competitive price,best quality and services.
|
Available Digit Height: |
0.28 inch, 0.3 inch, 0.32 inch, 0.36 inch, 0.39 inch, 0.4 inch, 0.42 inch 0.5 inch, 0.56 inch, 0.6 inch, 1 inch, 1.2 inch, 1.5 inch, 1.8 inch, 2.3 inch, 3 inch, 4 inch, 5 inch, 6 inch, 7 inch, 8 inch, 10 inch, 12 inch, 16 inch, and 20 inch. |
|
Available Emitting color: |
Red, Yellow-green, Orange, Amber, Yellow, Pure green, Blue, White, Dual color and RGB. |
|
Available Face color: |
Red, White, Grey, and Black. |
|
Available Segment Color: |
Red, White (milky),Water clear, and Yellow. |
|
Available Electrode: |
Common anode or Common cathode |
|
Color |
Electrical Characteristics[1] |
Absolute Maximum Ratings[1] |
|||||
|
Forward Voltage@ IF=20mA |
Reverse |
Power Dissipation |
DC Forward Current |
Peak Forward Current[2] |
|||
|
Typ. |
Max. |
||||||
|
Super Red |
Per Seg. |
1.8 |
2.2 |
30 |
60 |
25 |
100 |
|
Per DP |
1.8 |
2.2 |
30 |
60 |
25 |
100 |
|
|
Hi-Red |
Per Seg. |
1.8 |
2.2 |
30 |
60 |
25 |
100 |
|
Per DP |
1.8 |
2.2 |
30 |
60 |
25 |
100 |
|
|
Orange |
Per Seg. |
2.1 |
2.5 |
30 |
80 |
30 |
100 |
|
Per DP |
2.1 |
2.5 |
30 |
80 |
30 |
100 |
|
|
Yellow |
Per Seg. |
2.1 |
2.5 |
30 |
80 |
30 |
100 |
|
Per DP |
2.1 |
2.5 |
30 |
80 |
30 |
100 |
|
|
Green |
Per Seg. |
2.2 |
2.5 |
30 |
80 |
30 |
100 |
|
Per DP |
2.2 |
2.5 |
30 |
80 |
30 |
100 |
|
|
Ultra Red |
Per Seg. |
1.9 |
2.6 |
30 |
60 |
30 |
100 |
|
Per DP |
1.9 |
2.6 |
30 |
60 |
30 |
100 |
|
|
Ultra Orange |
Per Seg. |
2 |
2.6 |
30 |
65 |
30 |
100 |
|
Per DP |
2 |
2.6 |
30 |
65 |
30 |
100 |
|
|
Ultra Amber |
Per Seg. |
2 |
2.6 |
30 |
65 |
30 |
100 |
|
Per DP |
2 |
2.6 |
30 |
65 |
30 |
100 |
|
|
Ultra Yellow |
Per Seg. |
2 |
2.6 |
30 |
65 |
30 |
100 |
|
Per DP |
2 |
2.6 |
30 |
65 |
30 |
100 |
|
|
Ultra Green |
Per Seg. |
2.1 |
2.6 |
30 |
75 |
30 |
100 |
|
Per DP |
2.1 |
2.6 |
30 |
75 |
30 |
100 |
|
|
Pure Green |
Per Seg. |
3.5 |
4 |
30 |
110 |
30 |
100 |
|
Per DP |
3.5 |
4 |
30 |
110 |
30 |
100 |
|
|
Ultra Blue |
Per Seg. |
3.5 |
4 |
30 |
120 |
30 |
100 |
|
Per DP |
3.5 |
4 |
30 |
120 |
30 |
100 |
|
|
Ultra White |
Per Seg. |
3.5 |
4 |
30 |
120 |
30 |
100 |
|
Per DP |
3.5 |
4 |
30 |
120 |
30 |
100 |
|
|
Unit: |
\ |
V |
V |
uA |
mW |
mA |
mA |
First and foremost, seven segment LED displays are energy-efficient. LEDs use less power and are more energy-efficient than more traditional forms of lighting like incandescent bulbs. Seven segment LED displays also last much longer than other forms of lighting, greatly reducing the cost of lighting replacements for long-term applications.
Seven segment LED displays are more durable compared to other options. These displays have a longer lifetime due to their solid construction and they don’t run into the same issues with short circuiting or burning out as bulbs or other traditional light sources may experience.
Seven segment LED displays are also easier to read. The bright lights, low power consumption and their uniformity lend themselves to enhanced clarity of the text or numbers that are being displayed.
Seven segment LED displays are also highly customizable. They come in a variety of shapes, sizes and colours to fit all sorts of applications. They can be scaled down to a very small size, allowing them to fit into the tightest of spaces or in clusters for more complicated displays.
Seven segment LED displays have a good visibility range. They can be seen clearly from a distance, even in bright daylight, or low-light settings, making them perfect for larger venues, or those with atypical lighting.
Seven segment LED displays are versatile and cost-effective. By combining several segments, you can achieve a variety of designs and configurations that would be more difficult to achieve with other forms of lighting.
Finally, seven segment LED displays are highly efficient when it comes to communication. This is because they can be programmed to display virtually any kind of data, making them ideal for the important and often complex task of disseminating information.
|
Panel Size |
Customized sizes |
|
Pixel Pitch |
2.54 |
|
Supplier Type |
Original manufacturer, ODM, OEM |
|
Driver IC |
TM1681/TM1640/TM1621/Custom |
|
Interface |
SPI/I2C/Custom |
Application of SMD Seven Segment LED Display

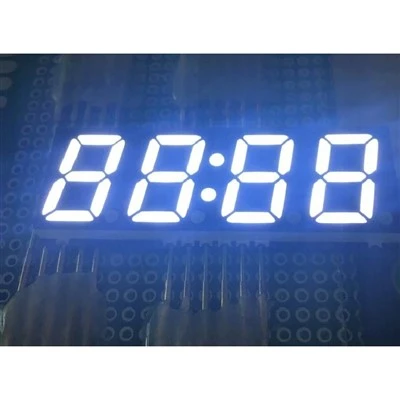

Digital Clocks and Timers:
SMD seven-segment displays are a common choice for displaying time and other numerical data in digital clocks, timers, and other household appliances.
Calculators:
These displays are used to show the results of calculations in basic and scientific calculators.
Home Appliances:
They can be found in appliances like microwaves, ovens, and washing machines, displaying settings and status information.
Medical Equipment:
These displays are used in medical equipment to display readings and data.
Gaming Applications:
They can be used in gaming machines and other electronic games to display scores and other information.
