0.51 Inch Dual Digit 7 Segment SMD LED Display

The 0.51 Inch Dual Digit 7 Segment SMD LED Display project contains 2 common cathode displays, current limiting resistors or each LED segment, 2 PNP transistors on each common cathode for multiplexing, etc. This is a very compact project that works well with 5V TTL signals, but can be optimized for 3.3V operation by reducing the value of the current limiting resistors. Header connectors are provided for easy connection with other microcontrollers. All inputs are compatible with TTL 5V signals.



Product Description

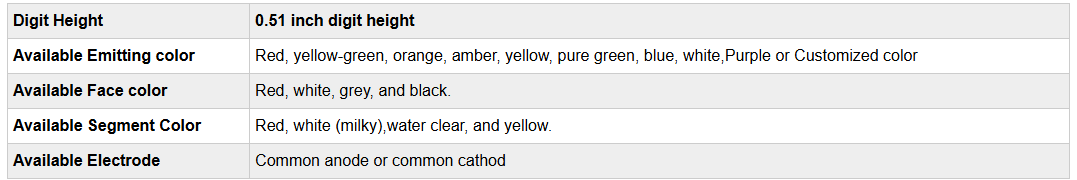

0.51 Inch Dual Digit seven segment SMD LED Display



1.Product Description:
Ultra Thin than Through-hole led display
Common Cathode or common anode SMD Display
RoHS and REACH Compliant
High intensity and excellent reliability Digital Display
High quality, Low power consumption
IC compatible , Easy assembly

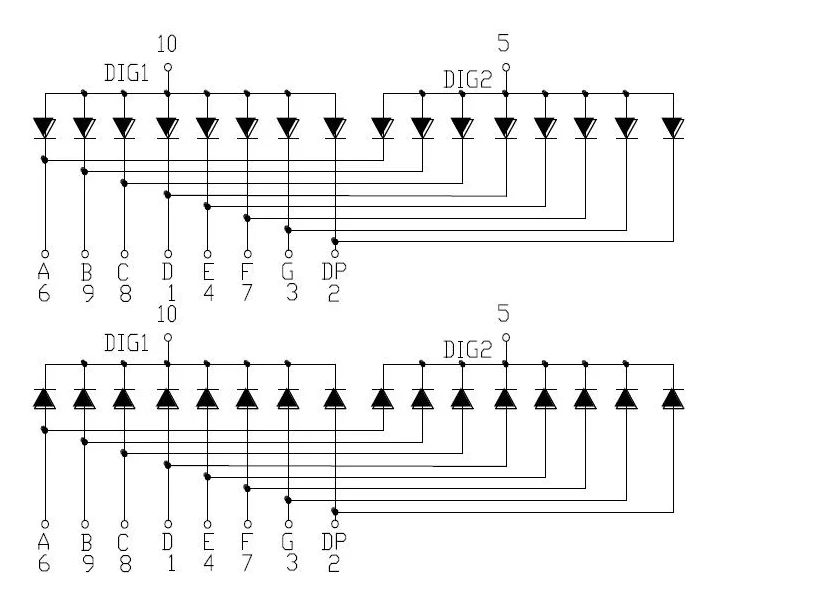

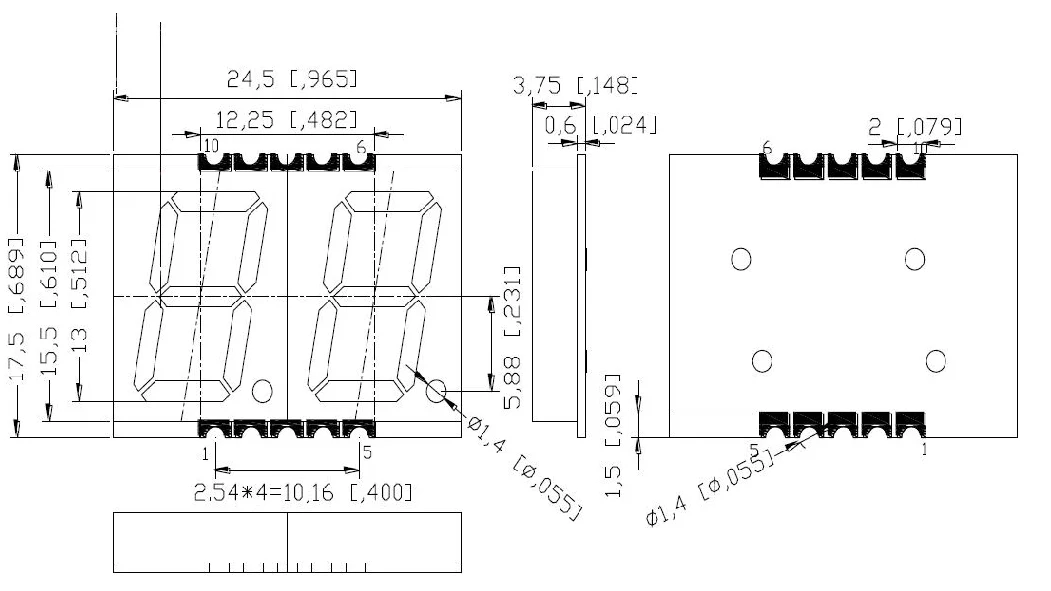

2. Outer Dumension and Internal Circuit drawing



3. Summary:

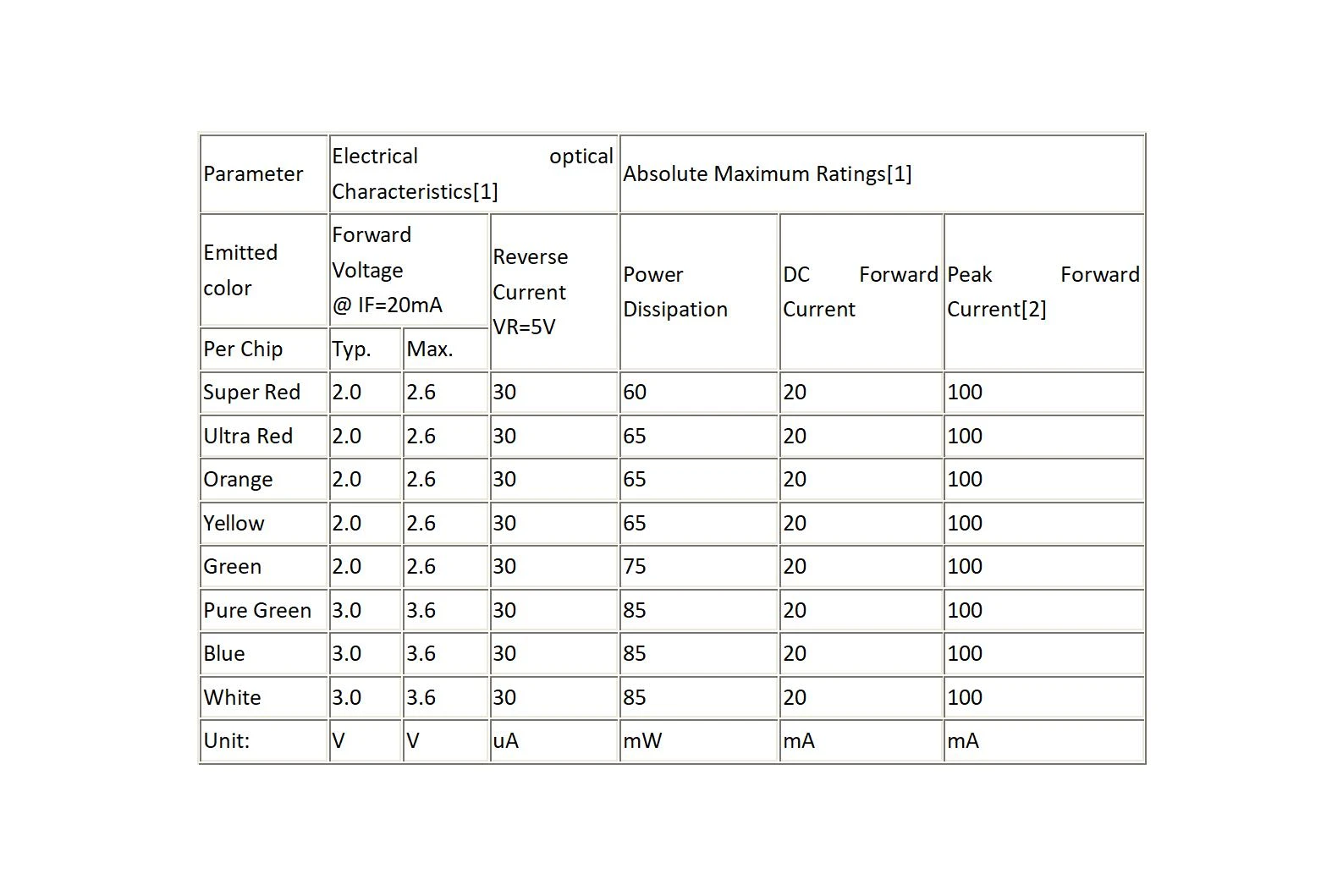

4. What max voltage and current you can use to drive it?

5. Application of Surface-mount LED Display
Home appliances
Instrument Panels
Digital readout display

6. SMD Packing: Blister pack or Tape and Reel Pack
