0.39 Inch Three Digit 7 Segment SMD LED Display

0.39 Inch Three Digit 7 Segment SMD LED Display

Product Description:
Ultra Thin than Through-hole led display
Common Cathode or common anode SMD Display
RoHS and REACH Compliant
High intensity and excellent reliability Digital Display
High quality, Low power consumption
IC compatible , Easy assembly

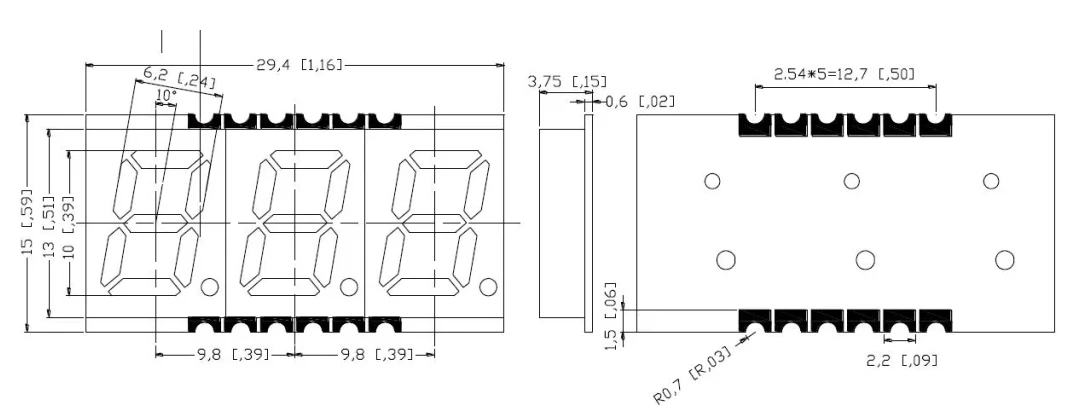

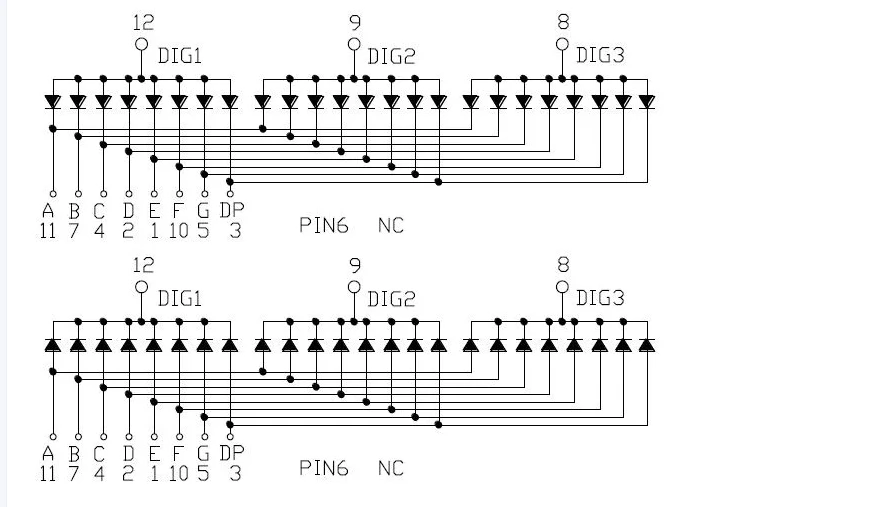

Outer Dumension and Internal Circuit Diagram:

SMD LED displays, or surface mount device LED displays, are designed to be mounted directly onto a circuit board. This type of display is ideal for small devices where space for components is limited. The 0.39-inch size of a three-digit 7-segment display can clearly display digital information without taking up too much space.

SMD LED displays are also versatile when it comes to customization. The displays can be made in different colors, including red, green, yellow, and blue. They can also be made with different types of LEDs, such as high brightness and super bright LEDs, to suit different applications.

When choosing a 0.39-inch three-digit 7-segment SMD LED display, it is important to consider the specific requirements of the device in which it will be used. For example, the brightness and color of the display may need to be adjusted depending on the lighting conditions in which it will be used.
