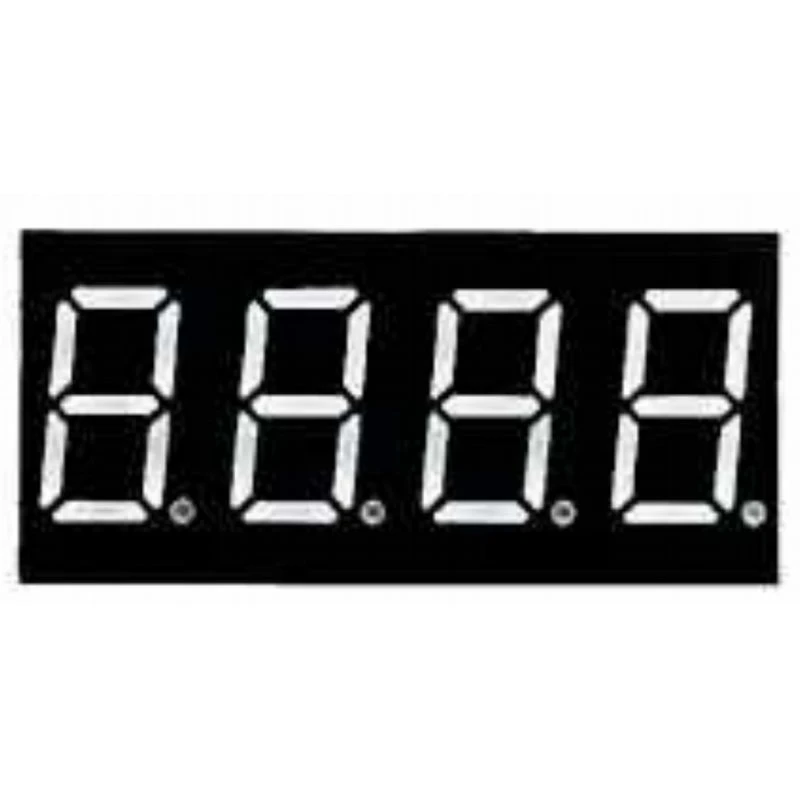

0.56inch Four Digit 7 Segment SMD Display

Color: white
Low Current Consumption
High Brightness
Easy to Use

Send Inquiry

Product Introduction

0.56-inch four-digit seven-segment surface mount LED display (SMD Display) is a digital display component widely evaluated in various electronic devices. It is 0.56 inches (about 14.2 mm) in size and adopts a seven-segment design, which can clearly display the numbers 0-9 and some letters and symbols. This display has the characteristics of correct size, high brightness, low power consumption and easy integration, and is widely used in home appliances, instrumentation, time display, test and measurement equipment, and control devices. For example, common applications include digital clocks, thermometers, calculators, car dashboards, etc.

Four-digit seven-segment SMD displays are usually available in a variety of colors such as red, green, blue, yellow, and white to meet the needs of different application scenarios. Its surface mount technology (SMD) makes the display easier to assemble, while reducing space occupation and improving design flexibility. In addition, this display also has good viewing angle stability and long life, and can maintain stable display effects under various environmental conditions. Compared with traditional direct-plug LED displays, 0.56-inch four-digit seven-segment SMD displays have smaller size, higher integration and better evaporation performance.

In terms of technical parameters, the operating voltage range of the 0.56-inch four-digit seven-segment SMD display is 3.3V to 5V, the maximum operating current is 20mA, the brightness range is 2000 to 5000mcd, the viewing angle is about 140 degrees, and its average luminous intensity, forward voltage, reverse current and other key indicators have been strictly tested and optimized to ensure the stability and reliability of its performance. At the same time, the display also supports common backlight or common cathode driving mode, and interfaces with various control circuits as follows

Features:

Type: Common Anode

Color: white

Low Current Consumption

High Brightness

Easy to Use

PCB Mounting

Black face and white segments

It is widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information.

Digital readout display

Appliances and White Goods

Gaming applications

Home and smart appliances

Automotive Industry for Dashboard display, fuel gauge

Test and measurement equipment

Power converter,

TV set-up boxes and gaming machine

Elevators

Timer, controller, DPM, counter, etc

Display time and digital combination

A Seven Segment LED Display is the most basic electronic display device is very commonly used to display numerals from 0-9. The seven-segment display comes in two configurations namely Common Anode and Common Cathode. It can also display Hexadecimal 0~ 9 and A,B,C,D,E,F
