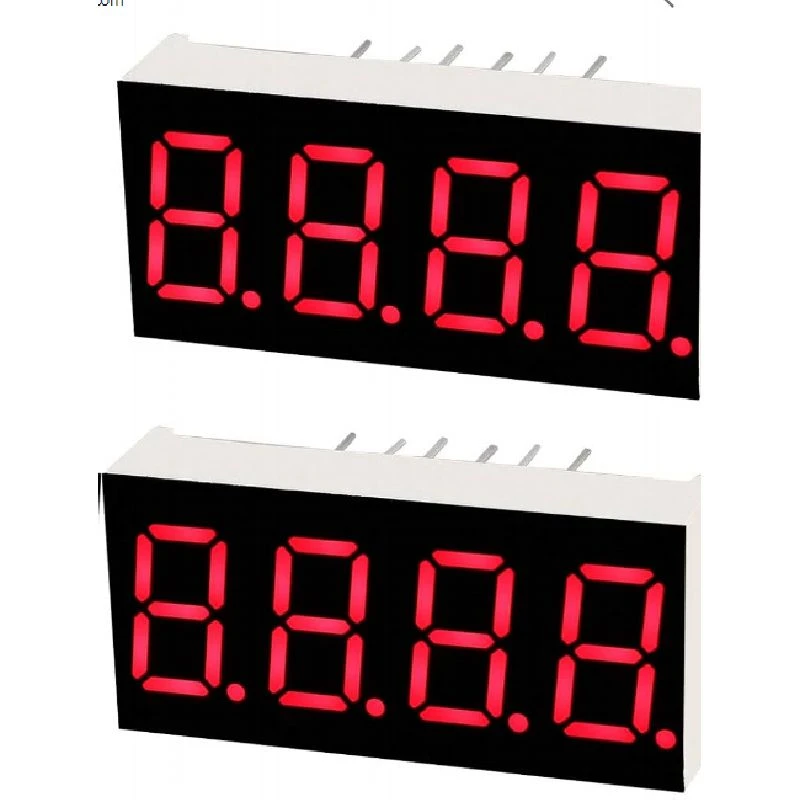

0.39inch Four Digit 7 Segment SMD Display

Description: Common Anode Or Cathode 0.39″ Inch 4 Digit 7 Segment Red Color LED Digital Display

FOUR Digit 0.56 Inch RED Color CC Or CA Cathode 7 Segment Display 4 Digit RED LED Light Seven Segment Display 0.56 Inch 10 Pin Leads Digital 7 Segment LED Display

Seven segment displays are used in many days today's consumer devices like microwave ovens, washing machines, and air conditioners. They are a simple but effective way to display numerical data like time or quantity. Since they are made out of LEDs, they are a low-cost option for displaying information. They are widely appreciated for its features like accuracy, clarity and optimum functionality.

4 Digit Seven Segment LED Displays are an ideal technology for markets such as industrial controls, medical devices, set-top box communications equipment, white goods and aerospace. LED Displays are available in a wide range of sizes, styles and options to suit any design requirements.



Specifications:

Character Height: 0.56″

Illuminated color: Red

Bus polarity: Common Anode Or Cathode

Number of pins/leads: 12

Typical forward voltage: 2.1V

Typical forward current: 20mA

Brightness: 1.0 mcd @ 10mA

Wavelength: 697nm

Decimal point location: Right-hand side

Dimensions: 50.3 x 19.0 x 8.0 mm

Digit quantity: 4 Digit



Features:

Bright Red LED chip, which is made from Al GaAs on GaAs substrate

Blackface and RED LED segments

Type: Common cathode

No. of Pins: 12

Low Current Consumption

High Brightness

Easy to Use with PCB Mounting as well as on Breadboard

High luminous intensity output

Low voltage and current operating

Ultra-low power consumption

Solid-state LED chip based

Long life-span

Easy mounting on printed circuit board and sockets

IC compatible

Certificates: RoHS and SGS



Applications:

Industrial Controls

Medical Equipment

Communications Equipment

Test and Measurement Equipment

Security Electronics

Life Safety Equipment

Meter Displays

Audio equipment or instrument panels

General use for digital indicators

Multimedia product

Bank exchange rate display

LED clock display

Display for gas station and other various display areas of equipment/machine



Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.



Package includes:

1 x Common Anode Or Cathode 0.56″ Inch 4 Digit 7 Segment Red Color LED Digital Display
