Product Introduction

Led 7 Segment Display Red is a commonly used digital display component, widely evaluated in various electronic devices. It is composed of seven long red light-emitting diodes (LEDs) and can clearly display numbers from 0 to 9 and some simple English letters and symbols. The display has the characteristics of improved brightness, low power consumption, long life and high reliability, and has been widely used in general electronic equipment, instruments, control panels and embedded systems.The basic structure of the LED 7-segment red display includes seven main parts (a, b, c, d, e, f, g) and an optional small component digital dot segment (dp), which are illuminated in different combinations to display various numbers and characters. According to the connection method, the LED display 7-segment red can be divided into two types:a shared cathode and an anode. A common anode is when all of the LEDs' anodes are connected together, and the appropriate sections are illuminated by adjusting the cathode's level; a common cathode is when all of the LEDs' anodes are connected together, and the display is accomplished by adjusting the light's brightness. This display can be on a brighter target thanks to the choice of visual LED red, making it appropriate for situations when a digital display needs to be highlighted or used in a setting with lower light levels.Furthermore, the red LED has powerful control shielding and anti-light interference properties, which enable the display to make sound decisions in bright light or outside. To satisfy the demands of various application scenarios, the LED 7-segment display Red has a wide range of technical requirements, including varying character heights, luminous intensity, viewing angles, and operating voltages and currents. For example, common character heights are 7mm, 10mm and 14mm, the operating voltage range is 2.0 V to 5.0V, and the operating current is generally around 20mA. The display also supports a variety of packaging forms, such as this reflective type, single-segment seven-segment type and monolithic integration, to adapt to different installation and layout requirements.In real-world applications, a decoder/driver chip is typically used in combination with an LED 7-segment display Red to accomplish digital signal conversion and display. By converting input signals like binary and BCD codes into output signals that regulate LED point brightness, the decoder chip can streamline circuit design and increase system dependability.

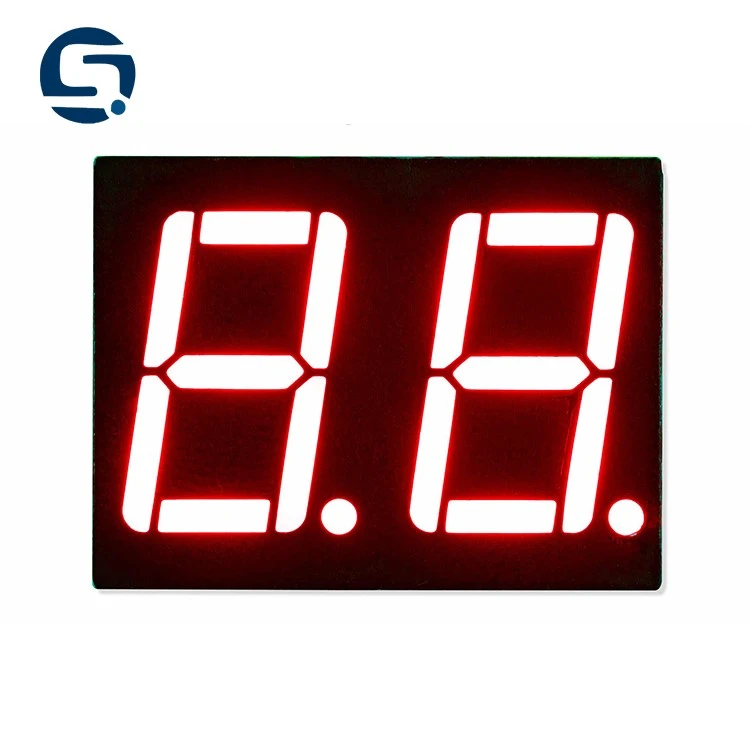

A 7-segment display is a classic, often used and already familiar component. The size of the digit on the display is 0.56inch and the light it transmits is red. The display has a common cathode.

The Red LED 7-Segment Display is lightweight, strong, reusable, impact-resistant, and difficult to break. You can clearly examine these facts thanks to the display module. If the voltage and current are right, it can emit light.
Description: This LED segment display module is plug-and-play, requiring no laborious wiring, and is quick and simple to use.
Application: A wide range of mechanical devices, including control panels, LED matrix displays, billboards, and advertising backgrounds, can make use of this LED display digital tube.

These Led 7 Segment Display Red have 7 individual LEDs made up of the 7 segments of the display plus an 8th LED used as a decimal point. The LEDs are labeled Segments A to G and the decimal point is DP.

The display is a Common Anode (CA) type, which means that the anodes of all 8 LEDs are connected together (common) and these anodes are connected to the center pins at either end of the display and then to Vcc.

A series current limiting resistor should be installed on each of these eight control pins to guard against harm to the LED module or uC. Although it is possible to use current limiting resistors on the Vcc pins rather than the control pins, this is not advised because the brightness of the display would change based on how many segments are lighted simultaneously.
